Standard Specifications

Construction

Mounting

Flush panel mounting (on a vertical plane) Mounting may be inclined downward up to 30 degrees from a horizontal plane.

Allowable panel thickness

2 to 26 mm

Front panel

Water and dust-proof (based on IEC529-IP65 and NEMA No.250 TYPE4)

Input

Number of inputs

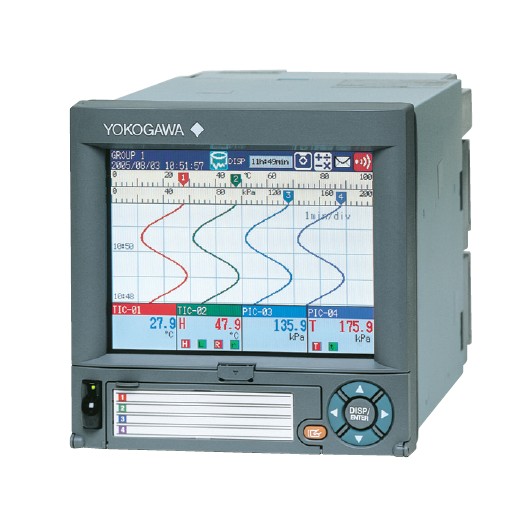

YOKOGAWA DX1000

2, 4, 6, 12 channels

YOKOGAWA DX2000

4, 8, 10, 20, 30, 40, 48 channels

Measurement interval

YOKOGAWA DX1002, YOKOGAWA DX1004, YOKOGAWA DX2004, YOKOGAWA DX2008

125 ms, 250 ms, 25 ms (fast sampling mode)

YOKOGAWA DX1006, YOKOGAWA DX1012, YOKOGAWA DX2010, YOKOGAWA DX2020, YOKOGAWA DX2030, YOKOGAWA DX2040, YOKOGAWA DX2048

1 s (Not available when A/D integration time is set to 100 ms), 2 s, 5 s, 125 ms (fast sampling mode*)

* A/D integration time is fixed to 1.67 ms in case of fast sampling mode.

Inputs

DCV

20, 60, 200 mV, 2, 6, 20, 50 V, 1-5 V

TC

R, S, B, K, E, J, T, N, W, L, U, WRe

RTD

Pt100, JPt100

DI

Contact input, TTL level

DCA

With external shunt resistor attached

Input

Range

Measurement accuracy (when the integration time is 16.7 ms or more)

Display resolution

DCV

1-5 V

±(0.05% of rdg+3 digits)

1 mV

Thermocouple*

K

* Does not include the accuracy of reference junction compensation

±（0.15％ of rdg+0.7℃）

0.1°C

Resistance thermometer detector

Pt100

±（0.15％ of rdg+0.3℃）

0.1°C

Display

Display unit

DX1000

5.5-inch TFT color LCD (320 x 240 pixels)

DX2000

10.4-inch TFT color LCD (640 x 480 pixels)

Display group

Number of display

DX1000: 10 groups, DX2000: 36 groups

Number of assignable channels for one group

DX1000: 6 channels, DX2000: 10 channels

Display color

Trend/Bargraph

Selectable from 24 colors

Background

White or black selectable

Trend display

Trend display type

Vertical, horizontal, landscape, horizontal split or circular* selectable

* Circular display is only for DX2000.

Bargraph display

Direction

Vertical or horizontal selectable

Digital display

Display renewal rate

1 s

Overview display

Number of indication channels

Measuring values and alarm status of all channels

Information display

Alarm summary, message summary, memory information, report information, relay status, Modbus status

Tag display

Number of displayable characters

Tag number: Max. 16 characters
Tag comment: Max. 32 characters

Displayable characters

Tag number: Alphanumerics

Tag comments: Alphanumerics, Japanese, and Chinese

Message display

Number of characters

Max. 32 characters

Number of messages

100 messages (including 10 free messages)

Historical display function

Display the retrieved data (display data or event data) from internal or external memory.

Custom display function

User can change display object (trend, numeric, and bar graphs, etc.) sizes and attributes, and add objects freely to create screens.

Number of screens

28 (3 from internal memory, 25 from external media (CF))

Max. number of
placeable
display objects

132 (normal: 80, scale: 4, trend: 4, list: 4, graphic: 40)

Data Saving Function

External storage medium

Medium

CompactFlash memory card (CF card)

Internal memory

Medium

Flash memory

Capacity

400 MB

Max. number of files can be saved

400 files (total number of display data file and event data file)

Alarm Function

Number of alarm levels

Up to 4 levels for each channel

Alarm types

High and low limits, differential high and low limits, high and low rate-of-change limits and delay high and low

Alarm annunciator function

Alarm display based on alarm sequence, and relay output operation. Supported alarm sequences: 3 (ISA-A-4, ISA-A, ISA-M)

Event Action Function

General

Particular action can be executed by particular event.

Number of event action

40 actions can be set

Security Functions

General *

* Please refer the Advanced security function option (/AS1) for the models with the /AS1 option.

Login function or key lock function can be set for each key operation or communication operation.

Key lock function

On/off and password can be set for each operation key and FUNC operation.

Login function

User name and password to login can be set.

Clock

Clock

With calendar function (year of grace)

Clock accuracy

±10 ppm, excluding a delay (of 1 second, maximum) caused each time the power is turned on.

DST function (summer/winter time)

The time at which the daylight savings time adjustment is automatically calculated and configured.

Communication Function

Connection

Ethernet (10BASE-T)

Protocols

TCP, UDP, IP, ICMP, ARP, EtheNet/IP, DHCP, HTTP, FTP, SMTP, SNTP, Modbus, DX private

Communication function

E-mail function, FTP client function, Transferred data file, FTP server function, Web server function, SNTP client function, SNTP server function, DHCP client function, Modbus client function, Modbus server function

EtherNet/IP server

Connects to EtherNet/IP networks as an adapter (server).

Batch Function

Overview

Data display and data management with batch name, text field function and batch comment function are available.

Power Supply

Rated power supply

100 to 240 VAC (automatic switching)

Allowable power supply voltage range

90 to 132 or 180 to 264 VAC

Rated power supply frequency

50/60 Hz（automatic switching）

Power consumption　　　　　　　　　　 　

DX1000

60 VA (max., for 240 VAC power supply)

DX2000

100 VA (max., for 240 VAC power supply)

Normal Operating Conditions

Power voltage

90 to 132 or 180 to 250 VAC

Power supply frequency

50 Hz ±2%, 60 Hz ±2%

Ambient temperature

0 to 50 °C

Ambient humidity

20% to 80% RH (at 5 to 40 °C)
