YOKOGAWA FX1000 Paperless Recorder

Paperless Recorder
Premium paperless recording technology and performance at an entry-level price

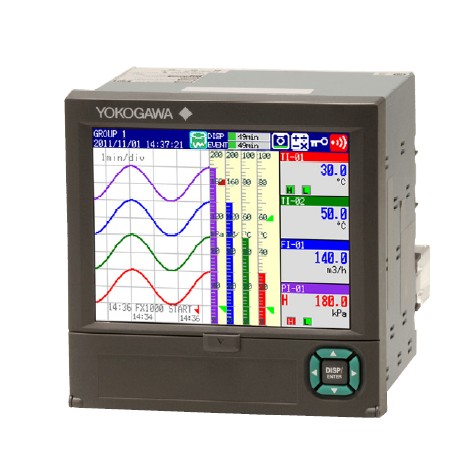

The YOKOGAWA FX1000 is a Paperless Recorder that displays real-time measured data on a color LCD and saves data on a CompactFlash memory card (CF card*1).

It can be hooked up to network via Ethernet, which enables to inform by Email and to monitor on Web

site as well as to transfer files by using FTP. Also, it can communicate with Modbus/RTU or Modbus/

TCP. It comes with a two, four, six, eight, ten-channel or twelve-channel model. As the input signal, a

DC voltage, thermocouple, resistance temperature detector, or contact signal can be set to each channel.

The data saved on a CF card or the data transferred via networks can be converted by data conversion

software to Lotus 1-2-3, Excel, or ASCII format file, facilitating processing on a PC. Not only this, the

Viewer software allows a PC to display waveforms on its screen and to print out waveforms.

Ordering Examples:

FX1002-0-2-H, FX1002-4-2-H: 2ch, Shortest measurement interval: 125ms

FX1004-0-2-H, FX1004-4-2-H: 4ch, Shortest measurement interval: 125ms

FX1006-0-2-H, FX1006-4-2-H: 6ch, Shortest measurement interval: 1s

FX1008-0-2-H, FX1008-4-2-H: 8ch, Shortest measurement interval: 1s

FX1010-0-2-H, FX1010-4-2-H: 10ch, Shortest measurement interval: 1s

FX1012-0-2-H, FX1012-4-2-H: 12ch, Shortest measurement interval: 1s

Options:

/A1: Alarm output 2 points (C-contact)*1*10

/A2: Alarm output 4 points (C-contact)*1

/A3: Alarm output 6 points (C-contact)*1*3

/A4: A Alarm output 12 points (A-contact)*1*3

/C2: RS-232 interface*2

/C3: RS-422A/485 interface*2

/C7: Ethernet interface

/F1: FAIL/Status output*3

/M1: Mathematical functions (including Report functions)

/N2: 3 leg isolated RTD*4

/N3F: Extended input type (without Pt1000)

/P1: 24 VDC/AC power supply

/R1: Remote control 8 points*5

/TPS2: 24VDC transmitter power supply (2 loops)*6*10

/TPS4: 24VDC transmitter power suply (4 loops)*7

/USB1: USB interface (1 port)

/PM1: Pulse input 3 points, Remote control 5 points (including Mathematical functions)*8

/CC1: Calibration correction function

/LG1: Log scale

/PWR1: Power monitor (including Mathmatical functions)*

Optional Accessories:

Mounting brackets: B8730BU , For panel mounting

Rubber packing for dust and water protection - , For single-unit mounting

FX1000 DAQSTANDARD/Manuals: FXA120 , CD. Contains the software and user’s manuals.

FX1000 Safety Precautions and Installation Guide: IM 04L21B01-03EN , A3 size

How to Use the CD Installing FXA120 DAQSTANDARD and Opening FX1000 Manuals:

IM 04L21B01-66EN , A4 size

CF card: 772093, 512 MB

GENERAL SPECIFICATIONS

Construction

Mounting:	Flush panel mounting (on a vertical plane) Mounting may be inclined downward up to 30 degrees from a horizontal plane.
Allowable panel thickness:	2 to 26 mm
Front panel:	Water- and dustproof: Complies with IEC529-IP65 (excluding side-by-side mounting)

Input

Number of inputs:	YOKOGAWA FX1002: 2 channels, YOKOGAWA FX1004: 4 channels, FX1006: 6 channels, YOKOGAWA FX1008: 8 channels, YOKOGAWA FX1010: 10 channels, FX1012: 12 channels
Measurement intervals:	YOKOGAWA FX1002, YOKOGAWA DX1004: 125 ms, 250 ms YOKOGAWA FX1006, YOKOGAWA FX1008, YOKOGAWA FX1010, YOKOGAWA FX1012: 1 s, 2 s, 5 s
Inputs:	DCV (20, 60, 200 mV, 1, 2, 6, 20, 50 V, 1-5 V) TC (R, S, B, K, E, J, T, N, W, L, U, WRe) RTD (Pt100, JPt100) DI (Contact input, TTL level) DCA (with external shunt resistor attached)
Measurement/display accuracy:	Standard operating conditions: Temperature: 23 ± 2°C Humidity: 55% ± 10%RH Power supply voltage: 90 to 132 or 180 to 250 VAC Power supply frequency: 50/60 Hz ± 1% Warm-up time: At least 30 minutes. Other ambient conditions such as vibration should not adversely affect the operation.
