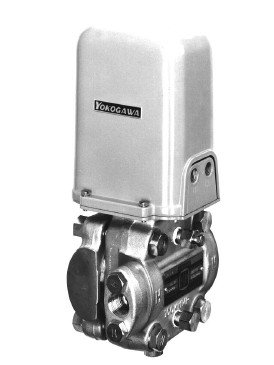

YOKOGAWA Y/11AM Pneumatic Absolute Pressure Transmitter

Model YOKOGAWA Y/11AM Pneumatic Absolute Pressure Transmitter measures absolute pressure in spans from 5.3 to 200 kPa.

The instrument transmits a proportional 20 to 100 kPa signal to remote pneumatic receivers.

Ordering Examples:

Y/11AM-MS1
Y/11AM-MS2
Y/11AM-MS3
Y/11AM-MS4
Y/11AM-HS1
Y/11AM-HS2
Y/11AM-HS3
Y/11AM-HS4

If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.

■FEATURES

● Time-Proven Pneumatic Differential Pressure

Transmitter Design

● Trouble-Free Construction.

● Excellent Performance.

● Easy to Calibrate.

● Wide Range.

● Overrange Protection.

● Stable Absolute Reference.

■STANDARD SPECIFICATIONS

Span Limits:

Refer to Table 1.

Span is continuously adjustable within range limits.

Range Limits *:

Refer to Table 1.

*: Kit for suppressed-zero ranges is installed as standard.

Upper range-value must not exceed upper range-limit of capsule.

Overpressure Limits:

Refer to Table 1.

Output Signal:

20 to 100 kPa.

Model Y/11AM

Pneumatic Absolute Pressure Transmitter

Yokogawa Electric Corporation

Accuracy:

Refer to Table 2.

Repeatability:

0.1 % of span.

Dead Band:

0.05 % of span.

Air Supply Pressure:

140 kpa, 1.4 kgf/cm2 or bar, or 20 psi.

Air Consumption:

0.5 m3/h at 0 _C, 101.3 kPa {1.033 kgf/cm2} absolute (0.3 scfm).

Ambient Operating Temperature Range:

-40 to 120 _C (-40 to 250 _F).

Process Temperature Limits:

-40 and 120 _C (-40 and 250 _F) at capsule.
