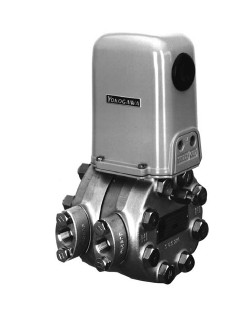

YOKOGAWA Y/13HA Pneumatic Differential Pressure Transmitter
Model YOKOGAWA Y/13HA Pneumatic Differential Pressure Transmitter measures differential pressure in spans from 5 to 210 kPa at high static pressure to 41 MPa. The instrument transmits a proportional 20 to 100 kPa signal to remote pneumatic receivers.
Ordering Examples:
Y/13HA-MS1
Y/13HA-MS2
Y/13HA-MS3
Y/13HA-MS4
Y/13HA-MS6
Y/13HA-MS7
Y/13HA-HS1
Y/13HA-HS2
Y/13HA-HS3
Y/13HA-HS4
Y/13HA-HS6
Y/13HA-HS7
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
■FEATURES
● Time-Proven Pneumatic Differential Pressure Transmitter Design.
● Trouble-Free Construction.
● Excellent Performance.
● Easy to Calibrate.
● Wide Range Capability.
● Versatile Applications Capability for Flow, Liquid Level, and Density Measurements.
■STANDARD SPECIFICATIONS
Span Limits:
Refer to Table 1.
Span is continuously adjustable within range limits.
Range Limits *:
Refer to Table 1.
*: When lower range-value is other than zero, optional kit for elevated-zero or suppressed-zero ranges is installed.
Static Pressure Limits:
Refer to Table 1.
Output Signal:
20 to 100 kPa.
Accuracy (includes linearity, hysteresis and
repeatability):
Spans between 5 and less than 130 kPa, 500 and less than 13400 mmH2O, 50 and less than 1300 mbar, or 20 and less than 525 inH2O differential pressure (_P): _0.5 % of span.
Spans between 130 and 210 kPa, 13400 and 21600 mmH2O, 1300 and 2100 mbar, or 525 and 850 inH2O differential pressure (_P): _0.75 % of span.
Repeatability:
0.1 % of span.
Dead Band:
0.05 % of span.
Air Supply Pressure:
140 kPa, 1.4 kgf/cm2 or bar, or 20 psi.
Air Consumption:
0.5 m3/h at 0 _C, 101.3 kPa (1.033 kgf/cm2) absolute (0.3 scfm).
Ambient Operating Temperature Range:
-40 to 120 _C (-40 to 250 _F).
Model Y/13HA
Pneumatic Differential Pressure Transmitter
Yokogawa Electric Corporation
Process Temperature Limits:
-40 and 120 _C (-40 and 250 _F) at capsule.
Mounting:
Bracket for nominal 50 mm (2 inches) horizontal or vertical pipe.
Air Connection:
Tapped for JIS R1/4 or 1/4 NPT, whichever specified.
Process Connections:
JIS Rc1/2, Rc1/4, 1/2 NPT, or 1/4 NPT female, whichever
specified.
Wetted Parts Material:
Body and Process Connectors: Forged JIS SUS 316 stainless steel.
Diaphragm Capsule: SUS 316L stainless steel.
Force Bar: SUS 316 stainless steel.
Force Bar Seal: Cobalt-nickel alloy.
Process Connector Gaskets: Glass reinforced Teflon (TFE) Capsule Gaskets:SUS 316L stainless steel coated with Teflon (see Note 1).
Force Bar Seal Gasket: Buna N (see Note 2).
Connection Hardware:
JIS SCM435 chrome-molybdenum steel cap screws and nuts for body; JIS SCM435 cap screws for process connectors.
Cover:
Cast aluminum with blow out plug, finished with gray polyurethane paint. Gasketed for National Electrical
Manufacturers Association (NEMA) (USA) Type 3 weatherproof service.
Approximate Weight:
15 kg (33 lb).
