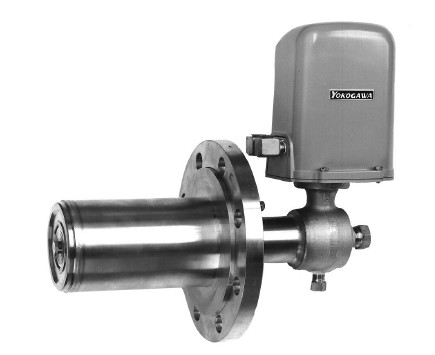

YOKOGAWA Y/13FEA Pneumatic Flange Mounting Differential Pressure Transmitter
The YOKOGAWA Flange Mounting Differential Pressure Transmitters Y/13FEA measure level or density of practically any liquid in differential spans from 5 to 210 kPa, at static pressures from full vacuum to flange ratings. The instruments transmit a proportional 20 to 100 kPa, signal to remote pneumatic receivers.
Ordering Examples:
Y/13FEA-MS415A2
Y/13FEA-MS435J2
Y/13FEA-HS415A2
Y/13FEA-HS435A4
Y/13FEA-MS415J4
Y/13FEA-MS435P2
Y/13FEA-HS415P4
Y/13FEA-HS435P6
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
■STANDARD SPECIFICATIONS
Span Limits:
Refer to Table 1.
Span is continuously adjustable within range limits.
Range Limits *:
Refer to Table 1.
*: When lower range-value is other than zero, optional kit for elevated-zero or suppressed-zero ranges is installed.
Static Pressure Limits:
Full vacuum and the flange rating per JIS B 2201 or ANSI B16.5.
Output Signal:
20 to 100 kPa.
Accuracy (includes linearity, hysteresis and
repeatability):
Spans between 5 and less than 130 kPa, 500 and less than 13400 mmH2O, 50 and less than 1300 mbar, or 20 and less than 525 inH2O differential pressure (_P): _0.5 % of span.
Spans between 130 and 210 kPa, 13400 and 21600 mmH2O, 1300 and 2100 mbar, or 525 and 850 inH2O differential pressure (_P): _0.75 % of span.
Repeatability:
0.1 % of span.
Dead Band:
0.1 % of span.
Supply Pressure:
140 kPa, 1.4 kgf/cm2 or bar, or 20 psi.
Air Consumption:
0.5 m3/h at 0 _C, 101.3 kPa {1.033 kgf/cm2} absolute (0.3 scfm).
Ambient Operating Temperature Range:
-40 to 120 _C (-40 to 250 _F).
Process Temperature Limits:
-40 and 120 _C (-40 and 250 _F) at capsule.
Mounting:
Direct to process with connection flange in any position.
Air Connection:
Tapped for JIS R1/4 or 1/4 NPT, whichever specified.
Model Y/13FEA
Pneumatic Flange Mounting Differential Pressure Transmitter
Yokogawa Electric Corporation
Process Connection:
High pressure side: Nominal 100 mm JIS 10 or 20K RF, nominal 4 inches ANSI Class 150 or 300 RF modified flange, or nominal 4 inches JPI Class 150 or 300 RF modified flange.
Low pressure side: Tapped for JIS Rc1/2 or 1/2 NPT whichever specified.
Flange Extension Length (X1 in Dimensions):
X1 = 129 mm (5 inches).
Diaphragm Extension Length (X2 in Dimensions):
X2 = 50.8 mm (2 inches). For other length, refer to Options.
Wetted Parts Material:
Body and Flange: Forged JIS SUS 316 stainless steel.
Diaphragm Capsule: SUS 316L stainless steel.
Diaphragm Extension: SUS 316 stainless steel.
Force Bar: SUS 316 stainless steel.
Force Bar Seal: Cobalt-nickel alloy.
Capsule Gaskets: Teflon (PTFE) *.
Force Bar Seal Gasket: Silicone elastomer.
*: Trademark of E.I. DuPont de Nemours & Company (USA) for polytetrafluoroethylene.
Cover:
Cast aluminum, finished with gray polyurethane paint.
Gasketed for National Electrical Manufacturers Association (NEMA) (USA) Type 3 weatherproof service.
Approximate Weight:
11 kg (24 lb) for JIS 10K flange version.
