YOKOGAWA FSA110/FSA111 Field Instruments Software
(FieldMate Versatile Device Management Wizard)
Features
FieldMate is available in a <Basic> and an <Advance> version with differentiated features provided.
FieldMate Basic is used for the field device setting and adjustment, which must be connected for all activities.
FieldMate Advance adds off line database function for up to 300 devices which maintains a complete record for all device configuration and maintenance activities. FieldMate is a PC based configuration tool that per- forms numerous tasks, including initial setup, daily maintenance, troubleshooting, and configuration back- up for device replacement. These tasks are stream- lined by FieldMate’s intuitive operation and integrated environment, which is independent from communica- tion protocols and device vendors. FieldMate incorporates the open FDT/DTM standard and is compliant with DTMs per the FDT 1.2/2 stand- ard. FieldMate supports by Built-in DTM interpreting the existing Device Description (DD) instaneously, for other vendor's devices that do not have DTMs available. * FDT: (Field Device Tool) is a frame application that standardsizes the communication and configuration interface between all field devices and host systems. * DTM: (Device Type Manager) is the application which defines the Graphical User Interface (GUI) specific to the device. The FDT frame is an integral part of FieldMate. Many DTMs are included with the FieldMate application, and additional DTMs are available from most field device vendors.
Ordering Examples:
FSA110-S11
FSA110-S11/B
FSA111-S11
FSA111-S11/B
FSA111-S11/B/VF
Model and Suffix Codes:
|
Model |
Suffix Codes |
Description |
Remarks |
|
FSA110 |
····································· |
FieldMate Basic License |
|
|
|
-S································· |
Single PC license |
License number issued |
|
— |
1····························· |
Always 1 |
|
|
Language |
1························· |
Always 1 *2 |
|
|
Option Code |
/B··················· |
USB FieldMate Modem |
BRAIN/HART |
|
|
|
|
|
|
|

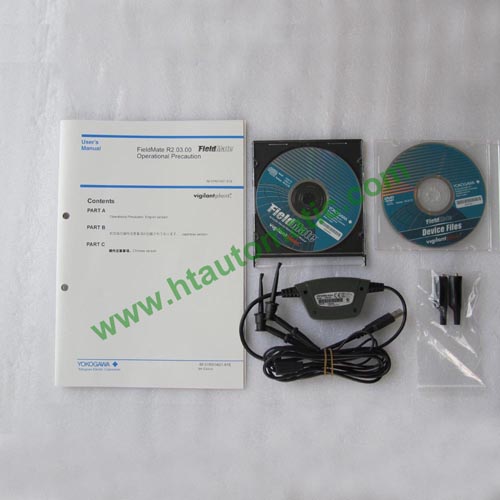

CD-ROM (FieldMate Software Media): F9197DS *1
DVD-ROM (Device Files Media): F9197DT *1
USB FieldMate Modem (BRAIN and HART protocols): F9197UC
|
Model |
Suffix Codes |
Description |
Remarks |
|
FSA111 |
····································· |
FieldMate Basic License |
|
|
|
-S································· |
Single PC license |
License number issued |
|
— |
1····························· |
Always 1 |
|
|
Language |
1························· |
Always 1 *2 |
|
|
Option Code |
/B··················· |
USB FieldMate Modem |
BRAIN/HART |
|
|
/VF············ |
AXF Verification Tool |
|
|
|
|
|
|
|
|
|
*1 Replacement disk only
*2 With an English Windows OS, FieldMate English can be installed. With the following Windows OS, either FieldMate with the following language or FieldMate English can be installed. Japanese, Chinese (simplified), German, French, Russian
