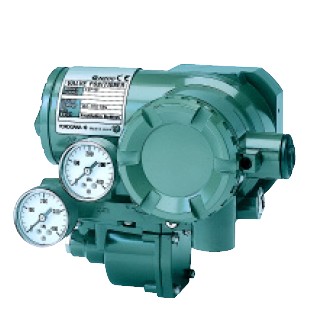

YOKOGAWA YVP110 Advanced Valve Positioner
The YOKOGAWA YVP110 Advanced Valve Positioner uses the FOUNDATION™ fieldbus protocol to control a pneumatic actuator (single type and double type) mounted to a control valve.
Ordering Examples:
YVP110-F1A1N
YVP110-F1A3N
YVP110-F1A5N
YVP110-F1A6N
YVP110-F2A1N
YVP110-F2A3N
YVP110-F2A5N
YVP110-F2A6N
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
The YOKOGAWA YVP110 Advanced Valve Positioner is a digital valve control device that controls valve pneumatic actuators in response to commands from a fieldbus control system. It communicates using the FOUNDATION fieldbus protocol.
The YVP110 is a versatile component that minimizes transmission lag, improves valve characteristics and response, and reduces flow-pressure variation effects.
The ValveNavi™ is a software tool that greatly facilitates the process of setting up, tuning, and maintaining the YVP110
Specifications
|
Applicable control valve: |
Linear or rotary motion control valve
(single acting actuator and double acting actuator) |
|
Linearity |
±0.5% of span (including linkages) *1 |
|
Hysteresis |
0.3% of span *1 |
|
Communication |
Digital: FOUNDATION fieldbus |
|
Communication line |
Supply voltage: 9 to 32V DC
Supply current: 17 mA (max) |
|
Functions |
Function blocks:
- AO: one analog output
- DI: two discrete inputs
- OS: one output splitter
- IS: one input selector
- AR: one arithmetic
- PID: one/two PID control functions (optional)
Pressure sensor (optional)
Flow characterization feature:
- Linear
- Equal percentage(50 : 1)
- Equal percentage(30 : 1)
- Quick opening
- Camflex Percentage
- Customer characterization (10 segments)
Auto tuning function
Valve position detection function
Continuous diagnostics function:
- Total travel
- Number of cycles
- Time open/time close/time near close |
|
Air supply pressure |
140 to 700 kPa (20 to 100 psi) |
|
Max. air consumption |
0.32 Nm3/h (0.178 SCFM) at 140 kPa (20 psi) of air supply *1 |
|
Max. output capacity |
6.6 Nm3/h (4.1 SCFM) at 140 kPa (20 psi) of air supply *1 |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) *1 |
|
Weight |
2.4 kg (5.3 lb) *1 |
*1 : Applicable for single acting actuator
YVP110 Advanced Valve Positioner General Specifications
