EJX110A |

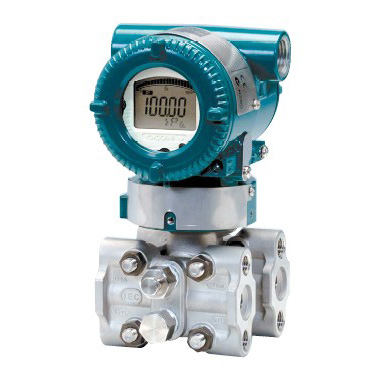

YOKOGAWA EJX110A Differential Pressure Transmitter
The high performance differential pressure transmitter YOKOGAWA EJX110A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure.
The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage.
The YOKOGAWA EJX series is available with BRAIN, HART, and FOUNDATION™ fieldbus communication protocols
Ordering Examples:
EJX110A-DMS4J-912DB
EJX110A-DHS4J-912NB
EJX110A-DMS4G-917DD
EJX110A-DHS4G-917ND
EJX110A-EMS4J-919EB
EJX110A-EHS4G-919DN
EJX110A-EMS4J-912ED
EJX110A-EHS4G-912EN
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
Specifications YOKOGAWA Differential Pressure Transmitter EJX110A
|
|
EJX110A Differential Pressure Transmitter |
|
L Capsule |
M Capsule |
H Capsule |
V Capsule |
|
Range |
-10 to 10 kPa
(-40 to 40 inH2O) |
-100 to 100 kPa
(-400 to 400 inH2O) |
-500 to 500 kPa
(-2000 to 2000 inH2O) |
-5 to 14 MPa
(-71 to 2000 psi) |
|
Span |
0.1 to 10 kPa
(0.4 to 40 inH2O) |
0.5 to 100 kPa
(2 to 400 inH2O) |
2.5 to 500 kPa
(10 to 2000 inH2O) |
0.07 to 14 MPa
(10 to 2000 psi) |
|
Accuracy |
±0.04% |
±0.04% |
±0.04% |
±0.04% |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, IECEx |
|
Output |
4 to 20 mA DC or FOUNDATION™ fieldbus, 2-wire system with digital communication |
|
Supply voltage |
BRAIN and HART:10.5 to 42 V DC
(10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC
(9 to 24 V DC for Entity and 9 to 17.5 V DC for FISCO) |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
|
Process temperature |
-40 to 120 deg C (-40 to 248 deg F) (general use type) |
|
Maximum working pressure |
16 MPa
(2300 psi) |
25 MPa
(3600 psi) |
|
Mounting |
2-inch pipe mounting |
|
Wetted parts material |
Capsule |
316L SST(Diaphragm material is Hastelloy C-276),
Hastelloy C-276,Tantalum,Monel |
|
Cover flange |
ASTM CF-8M,Hastelloy C-276,Monel |
|
Housing |
Cast aluminum alloy or ASTM CF-8M stainless steel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
