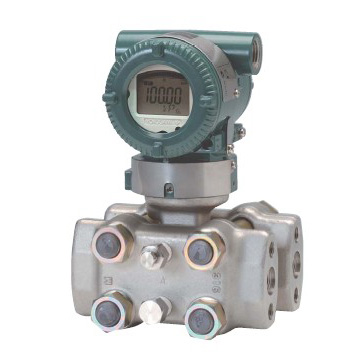

YOKOGAWA EJX130A High Static Differential Pressure Transmitter
The high performance draft range differential pressure transmitter YOKOGAWA EJX130A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure.
The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage.
The YOKOGAWA EJX series is available with BRAIN, HART, and FOUNDATION™ fieldbus communication protocols.
Ordering Examples:
EJX130A-DMS4J-912NB
EJX130A-DHS4J-912DN
EJX130A-DMS4G-917DB
EJX130A-DHS4G-919EB
EJX130A-EMS4J-712ND
EJX130A-EHS4J-719DK
EJX130A-EMS4G-912DB
EJX130A-EHS4G-912DN
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
Specifications YOKOGAWA High Static Differential Pressure Transmitter EJX130A
|
|
EJX130A Differential Pressure Transmitter |
|
M Capsule |
H Capsule |
|
Range |
-100 to 100 kPa
(-400 to 400 inH2O) |
-500 to 500 kPa
(-2000 to 2000 inH2O) |
|
Span |
1 to 100 kPa
(4 to 400 inH2O) |
5 to 500 kPa
(20 to 2000 inH2O) |
|
Accuracy |
±0.04% |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, IECEx |
|
Output |
4 to 20 mA DC or FOUNDATION™ fieldbus, 2-wire system with digital communication |
|
Supply voltage |
BRAIN and HART:10.5 to 42 V DC
(10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC
(9 to 24 V DC for Entity and 9 to 17.5 V DC for FISCO) |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
|
Process temperature |
-40 to 120 deg C (-40 to 248 deg F) (general use type) |
|
Maximum working pressure |
32 MPa
(4500 psi) |
|
Mounting |
2-inch pipe mounting |
|
Wetted parts material |
Capsule |
316L SST(Diaphragm material is Hastelloy C-276) |
|
Cover flange |
316 SST |
|
Housing |
Cast aluminum alloy or ASTM CF-8M stainless steel (optional) | |
|
