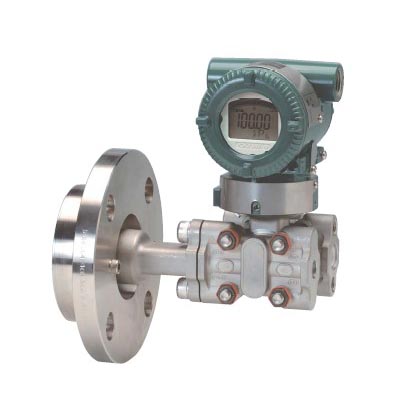

YOKOGAWA EJX210A Flange Mounted Differential Pressure Transmitter

The high performance flange mounted differential pressure transmitter YOKOGAWA EJX210A can be used to measure levels of densities of solidifying or precipitating liquids.
The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage.

The YOKOGAWA EJX series is available with BRAIN, HART, and FOUNDATION™ fieldbus communication protocols.

		EJX210A general specifications

		EJX210A User's Manual

Ordering Examples:

EJX210A-EMS4J-912NN-WA13B1SW00-B

EJX210A-DMS4J-912DN-WJ13B1SW00-B

EJX210A-EHS4G-912EN-WJ23B1SW00-B

EJX210A-DHS4G-919NN-WA13B1SW00-B

EJX210A-FMS4J-912NN-WA12B1WW00-B

EJX210A-EMS4J-917DN-WJ12B1WW00-B

EJX210A-FHS4G-912EN-WJ22B1WW00-B

EJX210A-DHS4G-917NN-WA12B1WW00-B

EJX210A-EMS4C-912NN-WA18B1WW00-B

EJX210A-DMS4J-915DN-WJ18B1WW00-B

EJX210A-EHS4C-91DEN-WJ28B1WW00-B

EJX210A-DHS4G-914NN-WA18B1WW00-B

EJX210A-EMS4J-91ANN-EA14B1SE01-B

EJX210A-DMS4J-91ADN-EJ14B1SE03-B

EJX210A-EHS4G-912EN-EJ24B1SE05-B

EJX210A-DHS4G-919NN-EA14B1SE00-B

EJX210A-EMS4J-91CNN-EA13B1WE01-B

EJX210A-DMS4J-91CDN-EJ13B1WE03-B

EJX210A-EHS4G-91DEN-EJ23B1WE05-B

EJX210A-DHS4G-919NN-EA13B1WE00-B

If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.

Specifications YOKOGAWA Flange Mounted Differential Pressure Transmitter EJX210A

	EJX210A Flange Mounted Differential Pressure Transmitter
	M Capsule	H Capsule
Range	-100 to 100 kPa (-400 to 400 inH₂O)	-500 to 500 kPa (-2000 to 2000 inH₂O)
Span	1 to 100 kPa (4 to 400 inH₂O)	5 to 500 kPa (20 to 2000 inH₂O)
Accuracy	±0.075%	±0.075%
Degrees of protection	IP67, NEMA 4X, and JIS C0920 immersion proof
Certificates	FM, CENELEC ATEX, CSA, IECEx
Output	4 to 20 mA DC or FOUNDATION™ fieldbus, 2-wire system with digital communication
Supply voltage	BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity and 9 to 17.5 V DC for FISCO)
Ambient temperature	-40 to 85 deg C (-40 to 185 deg F) (general use type) -10 to 85 deg C (14 to 185 deg F) (high temperature use type) -30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process temperature	-40 to 120 deg C (-40 to 248 deg F) (general use type) -10 to 250 deg C (14 to 482 deg F) (high temperature use type)
Maximum working pressure	Flange rating pressure
Mounting	Flange mounting
Process flange size	Flush type: 3-inch (80 mm),2-inch (50 mm),1 1/2-inch (40 mm) Extended type: 4-inch (100 mm), 3-inch (80 mm)
Diaphragm material (High side)	SUS316L, Hastelloy C-276, Tantalum
Process flange material	S25C, SUS304, SUS316
Housing	Cast aluminum alloy or ASTM CF-8M stainless steel (optional)
