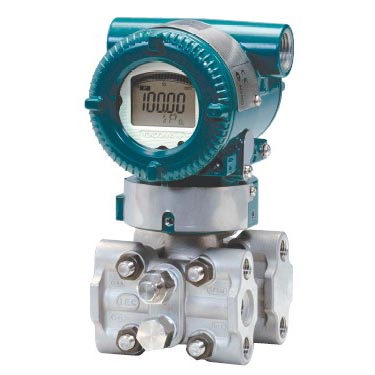

YOKOGAWA EJX430A Gauge Pressure Transmitter

The high performance gauge pressure transmitter YOKOGAWA EJX430A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam pressure.
The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage.

The YOKOGAWA EJX series is available with BRAIN, HART, and FOUNDATION™ fieldbus communication protocols.

EJX430A general specifications

EJX430A User's Manual

Ordering Examples:

EJX430A-DAS5J-912NB

EJX430A-DAS4J-912DJ

EJX430A-DBS2G-917EB

EJX430A-DHS4G-919DB

EJX430A-EHS4J-914NB

EJX430A-EAS4J-712DD

EJX430A-EAS4G-915EB

EJX430A-EBS4G-719DD

If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.

Specifications YOKOGAWA Gauge Pressure Transmitter EJX430A

		EJX430A Gauge Pressure Transmitter
		H Capsule	A Capsule	B Capsule
Range		-100 to 500 kPa (-400 to 2000 inH₂O)	-0.1 to 3.5 MPa (-14.5 to 500 psi)	-0.1 to 16 MPa (-14.5 to 2300 psi)
Span		2.5 to 500 kPa (10 to 2000 inH₂O)	0.0175 to 3.5 MPa (2.5 to 500 psi)	0.8 to 16 MPa (12 to 2300 psi)
Accuracy		±0.04%	±0.04%	±0.04%
Degrees of protection		IP67, NEMA 4X, and JIS C0920 immersion proof
Certificates		FM, CENELEC ATEX, CSA, IECEx
Output		4 to 20 mA DC or FOUNDATION™ fieldbus, 2-wire system with digital communication
Supply voltage		BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity and 9 to 17.5 V DC for FISCO)
Ambient temperature		-40 to 85 deg C (-40 to 185 deg F) (general use type) -30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process temperature		-40 to 120 deg C (-40 to 248 deg F) (general use type)
Maximum overpressure		16 MPa (2300 psig)		25 MPa (3600 psig)
Mounting		2-inch pipe mounting
Wetted parts material	Capsule	316L SST(Diaphragm material is Hastelloy C-276), Hastelloy C-276,Tantalum,Monel
	Cover flange	ASTM CF-8M,Hastelloy C-276,Monel
Housing		Cast aluminum alloy or ASTM CF-8M stainless steel (option)
