YOKOGAWA EJX510A and YOKOGAWA EJX530A Absolute and Gauge Pressure Transmitter

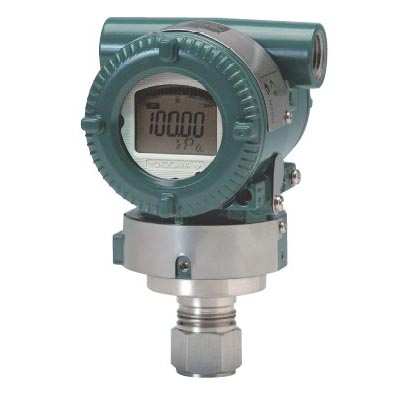

The general purpose absolute and gauge pressure transmitter YOKOGAWA EJX510A and YOKOGAWA EJX530A feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure.
The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage.

The EJX series is available with BRAIN, HART, and FOUNDATION™ fieldbus communication protocols.

		EJX510A and EJX530A general specifications

		EJX510A and EJX530A User's Manual

Ordering Examples:

EJX510A-DAS4N-012DN

EJX510A-DBS4N-012DF

EJX510A-DCS9N-017EN

EJX510A-DDS9N-019NN

EJX510A-EAS4N-012DN

EJX510A-EBS4N-012DF

EJX510A-ECS9N-017EN

EJX510A-EDS9N-019NN

EJX530A-DAS4N-012DN

EJX530A-DBS4N-012DF

EJX530A-DCS9N-017EN

EJX530A-DDS9N-019NN

EJX530A-EAS4N-012DN

EJX530A-EBS4N-012DF

EJX530A-ECS9N-017EN

EJX530A-EDS9N-019NN

If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.

Specifications YOKOGAWA Absolute and Gauge Pressure Transmitter EJX510A and EJX530A

		EJX510A and 530A (Measurement values below are in absolute for EJX510A)
		A Capsule	B Capsule	C Capsule	D Capsule
Range	EJX510A	0 to 200 kPa (0 to 29 psi)	0 to 2 MPa (0 to 290 psi)	0 to 10 MPa (0 to 1450 psi)	0 to 50 MPa (0 to 7200 psi)
	EJX530A	-100 to 200 kPa (-14.5 to 29 psi)	-0.1 to 2 MPa (-14.5 to 290 psi)	-0.1 to 10 MPa (-14.5 to 1450 psi)	-0.1 to 50 MPa (-14.5 to 7200 psi)
Span		8 to 200 kPa (1.16 to 29 psi)	0.04 to 2 MPa (5.8 to 290 psi)	0.2 to 10 MPa (29 to 1450 psi)	1 to 50 MPa (145 to 7200 psi)
Accuracy		±0.1%	±0.1%	±0.1%	±0.1%
Degrees of protection		IP67, NEMA 4X and JIS C0920 immersion proof
Certificates		FM, CENELEC ATEX, CSA, IECEx
Output		4 to 20 mA DC or FOUNDATION™ fieldbus, 2-wire system with digital communication
Supply voltage		BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity and 9 to 17.5 V DC for FISCO)
Ambient temperature		-40 to 85 deg C (-40 to 185 deg F) (general use type) -30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process temperature		-40 to 120 deg C (-40 to 248 deg F) (general use type)
Maximum overpressure		4 MPa (580 psi)	4 MPa (580 psi)	20 MPa (2900 psi)	75 MPa (10800 psi)
Mounting		Direct mounting/2-inch pipe mounting
Wetted parts material	Capsule	Hastelloy C-276
	Process connection	316L SST, Hastelloy C-276
Housing		Cast aluminum alloy or ASTM CF-8M stainless steel (optional)
