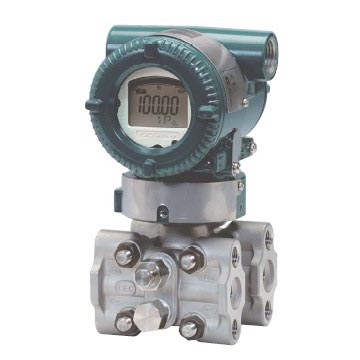

EJX910A Multivariable Transmitter |
|
L Capsule |
M Capsule |
H Capsule |
|
Range |
Differential pressure |
-10 to 10 kPa
(-40 to 40
inH2O) |
-100 to 100 kPa
(-400 to 400
inH2O) |
-500 to 500 kPa
(-2000 to 2000
inH2O) |
|
Static
pressure |
Absolute |
0 to 16 MPa abs
(0 to 2300 psia) |
0 to 25 MPa abs
(0 to 3600 psia) |
|
Gauge |
-0.1 to 16 MPa
(-14.5 to 2300 psig) |
-0.1 to 25 MPa
(-14.5 to 3600 psig) |
|
External temperature |
-200 to 800 deg C (-328 to 1472 deg F) |
|
Span |
Differential pressure |
0.1 to 10 kPa
(0.4 to 40 inH2O) |
0.5 to 100 kPa
(2 to 400 inH2O) |
2.5 to 500 kPa
(10 to 2000 inH2O) |
|
Static
pressure |
Absolute/
Gauge |
1 to 16 MPa
(145 to 2300 psi) |
1 to 25 MPa
(145 to 3600 psi) |
|
External temperature |
10 to 1050 deg C (18 to 1890 deg F) |
|
Accuracy |
Mass flow |
±1.0% |
|
Differential pressure |
±0.04% |
|
Static pressure |
±0.1% |
|
External temperature |
±0.5 deg C (±0.9 deg F) |
|
Flow
calculation
reference |
Primary
device |
Orifice |
Orifice Corner Taps [ISO5167-1 1991] |
|
Orifice Corner Taps [ISO5167-2 2003] |
|
Orifice Corner Taps [ASME MFC-3M 1989] |
|
Orifice Frange Taps [ISO5167-1 1991] |
|
Orifice Frange Taps [ISO5167-2 2003] |
|
Orifice Frange Taps [ASME MFC-3M 1989] |
|
Orifice Frange Taps [AGA No.3 1992] |
|
Orifice D and D/2 Taps [ISO5167-1 1991] |
|
Orifice D and D/2 Taps [ISO5167-2 2003] |
|
Orifice D and D/2 Taps [ASME MFC-3M 1989] |
|
Nozzle |
ISA1932 nozzle [ISO5167-1 1991/ISO5167-3 2003] |
|
Long radius nozzle
[ISO5167-1 1991/ISO5167-3 2003] |
|
ASME FLOW NOZZLES [ASME MFC-3M 1989] |
|
Venturi |
Venturi nozzle [ISO5167-1 1991/ISO5167-3 2003] |
|
Classical Venturi tube "as cast" convergent section
[ISO5167-1 1991/ISO5167-4 2003] |
|
ASME Venturi Tubes With a rought Cast or
Fabricated Convergent [ASME MFC-3M 1989] |
|
Crassical Venturi Tubes With a machined convergent
section [ISO5167-1 1991/ISO5167-4 2003] |
|
ASME Venturi Tubes With a machined convergent
section [ASME MFC-3M 1989] |
|
Classical Venturi tube with a rought-welded sheet-
iron convergent section
[ISO5167-1 1991/ISO5167-4 2003] |
|
Density
compensation
of fluid |
General fluid |
DIPPR (Physical property database) |
|
Natural gas |
AGA No. 8, ISO 12213 |
|
Steam |
IAPWS-IF97 Water and Steam, 1997 |
|
Manual mode |
Flow factors being input manually |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, IECEx |
|
Output |
[HART protocol type]
Dual output of 4 to 20 mA with pulse signals
[FOUNDATION fieldbus type]
FOUNDATION fieldbus,2-wire system with
digital communication |
|
HART Protocol Revision* |
HART protocol revision can be selected from 5 or 7 when ordering. The protocol revision can be changed by user configuration. |
|
Supply voltage |
HART:10.5 to 42 V DC
(10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F)
(general use type)
-30 to 80 deg C (-22 to 176 deg F)
(with integral indicator) |
|
Process temperature |
-40 to 120 deg C (-40 to 248 deg F)
(general use type) |
|
Maximum working pressure |
16 MPa
(2300 psi) |
25 MPa
(3600 psi) |
|
Mounting |
2-inch pipe mounting |
|
Wetted parts
material |
Capsule |
316L SST (Diaphragm material is Hastelloy C-276) |
|
Cover flange |
ASTM CF-8M |
|
Housing |
Cast aluminum alloy |
|
Flow configuration tool |
FlowNavigator
Flow Configuration Software (FSA120) |
