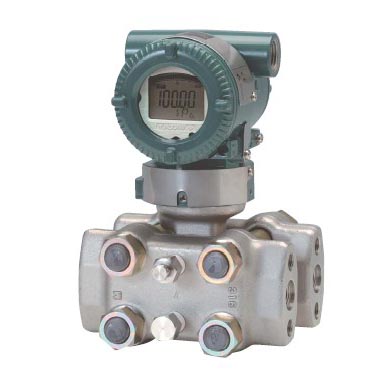

YOKOGAWA EJX930A Multivariable Transmitter

Introducing the Yokogawa EJX930A multivariable transmitter, a remarkable innovation in multi-sensing technology that makes optimal use of the powerful characteristics of the single-crystal silicon resonant sensor. Experience FlowNavigator (FSA120), PC-based software that is exclusively designed for use with the EJX930A. FlowNavigator enables users to configure mass flow and achieve accurate measurements with real-time full density compensation. Key features include:

l 1.0% mass flow rate accuracy

l Fully compensated mass flow: all flow factors can be automatically and dynamically calculated to an optimal value

l Advanced diagnostic function (option) [HART protocol type]

l Simultaneous dual output of 4 to 20 mA and pulse signals for total flow, flow rate, or alarm status

l HART protocol revision selectable from HART 5 or HART 7

l Long tag supporting up to 32 characters (HART 7)

l Enhanced burst mode and event notification (HART 7)

l SIL2 for safety requirement [FOUNDATION fieldbus protocol type]

l Various function blocks available; 5 Als, AR, IT, SC, and IS as standard PID as an optional feature

l Cyclically displays up to 10 variables

l Software download function(option)

		EJX930A general specifications

		EJX930A User's Manual

		EJX930A HART Communication Type User's Manual

		EJX930A Fieldbus Communication Type User's Manual

Specifications YOKOGAWA EJX930A Multivariable Transmitter

			EJX930A Multivariable Transmitter
			M Capsule	H Capsule
Range	Differential pressure		-100 to 100 kPa (-400 to 400 inH₂O)	-500 to 500 kPa (-2000 to 2000 inH₂O)
	Static pressure	Absolute	0 to 32 MPa abs (0 to 4500 psia)
		Gauge	-0.1 to 32 MPa (-14.5 to 4500 psig)
	External temperature		-200 to 800 deg C (-328 to 1472 deg F)
Span	Differential pressure		1 to 100 kPa (4 to 400 inH₂O)	5 to 500 kPa (20 to 2000 inH₂O)
	Static pressure	Absolute/ Gauge	1 to 32 MPa (145 to 4500 psi)
	External temperature		10 to 1050 deg C (18 to 1890 deg F)
Accuracy	Mass flow		±1.0%
	Differential pressure		±0.04%
	Static pressure		±0.1%
	External temperature		±0.5 deg C (±0.9 deg F)
Flow calculation reference	Primary device	Orifice	Orifice Corner Taps [ISO5167-1 1991]
			Orifice Corner Taps [ISO5167-2 2003]
			Orifice Corner Taps [ASME MFC-3M 1989]
			Orifice Frange Taps [ISO5167-1 1991]
			Orifice Frange Taps [ISO5167-2 2003]
			Orifice Frange Taps [ASME MFC-3M 1989]
			Orifice Frange Taps [AGA No.3 1992]
			Orifice D and D/2 Taps [ISO5167-1 1991]
			Orifice D and D/2 Taps [ISO5167-2 2003]
			Orifice D and D/2 Taps [ASME MFC-3M 1989]
		Nozzle	ISA1932 nozzle [ISO5167-1 1991/ISO5167-3 2003]
			Long radius nozzle [ISO5167-1 1991/ISO5167-3 2003]
			ASME FLOW NOZZLES [ASME MFC-3M 1989]
		Venturi	Venturi nozzle [ISO5167-1 1991/ISO5167-3 2003]
			Classical Venturi tube "as cast" convergent section [ISO5167-1 1991/ISO5167-4 2003]
			ASME Venturi Tubes With a rought Cast or Fabricated Convergent [ASME MFC-3M 1989]
			Crassical Venturi Tubes With a machined convergent section [ISO5167-1 1991/ISO5167-4 2003]
			ASME Venturi Tubes With a machined convergent section [ASME MFC-3M 1989]
			Classical Venturi tube with a rought-welded sheet- iron convergent section [ISO5167-1 1991/ISO5167-4 2003]
	Density compensation of fluid	General fluid	DIPPR (Physical property database)
		Natural gas	AGA No. 8, ISO 12213
		Steam	IAPWS-IF97 Water and Steam, 1997
		Manual mode	Flow factors being input manually
Degrees of protection			IP67, NEMA 4X, and JIS C0920 immersion proof
Certificates			FM, CENELEC ATEX, IECEx
Output			[HART protocol type] Dual output of 4 to 20 mA with pulse signals [ FOUNDATION fieldbus type] FOUNDATION fieldbus,2-wire system with digital communication
HART Protocol Revision*			HART protocol revision can be selected from 5 or 7 when ordering. The protocol revision can be changed by user configuration.
Supply voltage			HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) Fieldbus:9 to 32 V DC
Ambient temperature			-40 to 85 deg C (-40 to 185 deg F) (general use type) -30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process temperature			-40 to 120 deg C (-40 to 248 deg F) (general use type)
Maximum working pressure			32 MPa (4500 psi)
Mounting			2-inch pipe mounting
Wetted parts material	Capsule		316L SST (Diaphragm material is Hastelloy C-276)
	Cover flange		316 SST
Housing			Cast aluminum alloy
Flow configuration tool			FlowNavigator Flow Configuration Software (FSA120)
In case ordering HART communication, it is recommended to specify output signal code -J (HART 5/HART 7 selectable) than -E (HART 5 only). EJX-A Series except multivariable transmitters (EJX910A/EJX930A) already released "Output signal code -J" for HART 7 only. In this case HART protocol revision cannot be selected from HART 5 or HART 7. Protocol revision supported by HART configuration tool must be the same or higher than that of the EJX multivariable transmitter.
