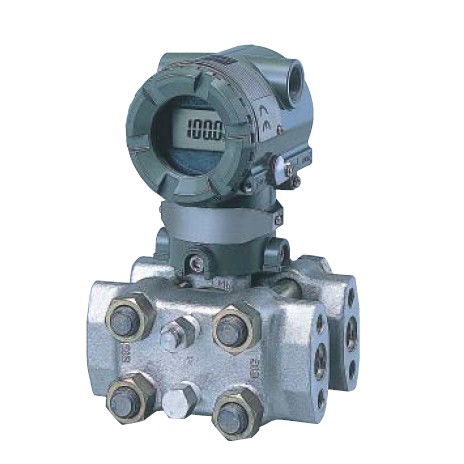

YOKOGAWA EJA130A High Static Differential Pressure Transmitter
Product Information
The high performance differential pressure transmitter model YOKOGAWA EJA130A can be used to measure liquid, gas, or steam flow as well as liquid level, density and pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.
The YOKOGAWA EJA Series is available with BRAIN, HART, FOUNDATION™ fieldbus or PROFIBUS PA communication protocols
Ordering Examples:
EJA130A-DMS5A-92NA
EJA130A-DMS4A-97DA
EJA130A-DMS3A-97EA
EJA130A-EMS2A-97DN
EJA130A-EMS4A-97DB
EJA130A-EMS5A-92NA
EJA130A-DMS1A-97DA
EJA130A-DMS5B-92NA
EJA130A-DMS4B-97DA
EJA130A-DMS3B-97EA
EJA130A-EMS2B-97DN
EJA130A-EMS4B-97DB
EJA130A-EMS5B-92NA
EJA130A-DMS1B-97DA
If you do not have complete model number, never mind, just supply us detailed parameters by email, we can choose model number and give you a quotation immediately.
Specifications YOKOGAWA EJA130A High Static Differential Pressure Transmitter
|
|
EJA130A High Static Differential Pressure Transmitter |
|
M Capsule |
H Capsule |
|
Range |
-100 to 100 kPa
(-400 to 400 inH2O) |
-500 to 500 kPa
(-2000 to 2000 inH2O) |
|
Span |
1 to 100 kPa
(4 to 400 inH2O) |
5 to 500 kPa
(20 to 2000 inH2O) |
|
Accuracy |
±0.065% |
±0.065% |
|
Degrees of protection |
IP67, NEMA 4X, and JIS C0920 immersion proof |
|
Certificates |
FM, CENELEC ATEX, CSA, IECEx |
|
Output |
4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication |
|
Supply voltage |
BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) |
|
Ambient temperature |
-40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator) |
|
Process temperature |
-40 to 120 deg C (-40 to 248 deg F) (general use type) |
|
Maximum working pressure |
32 MPa (4500 psi) |
|
Mounting |
2-inch pipe mounting |
|
Wetted parts material |
Capsule |
SUS316L (Diaphragm material is Hastelloy C-276) |
|
Cover flange |
SUS316 |
|
Housing |
Cast aluminum alloy or SUS316 equivalent stainless steel | |
|
